NBK Wireless Positioning Units EPU-220
What are Auto-Positioning Units?
Instead of manual handle operation, our equipment enables automatic positioning.
Batch control of multiple units is possible, dramatically reducing setup time.
Automated positioning
The built-in motor rotates the feed screw,
grasping the present position via the encoder and stopping at the target position.
Positioning is automated.
Characteristics
01:Maximum 32 unit batch control
![]() |
Batch control of up to 32 units is possible. Each can also perform different movements. POINTReduces total positioning timeWhen the time-consuming manual positioning of multiple locations is automated, they can be batch controlled, reducing total positioning time. |

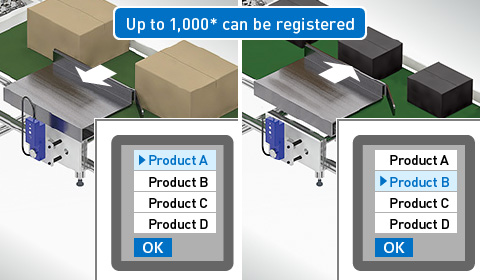

02:Multiple setup patterns can be registered
![]() |
The dedicated software function enables numerical setting for up to 1,000 setups.* Daily setup time is reduced. POINTFrequent positioning work goes more smoothly When changing models on the same line multiple times a day, automated line positioning can result in large total time savings. It also helps simplify complex positioning work, making handle operation order errors impossible.* EPC-100: Max. 1,000 |

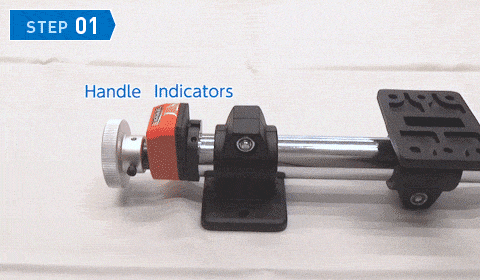

03:Easy introduction
![]() |
POINTEasily replaces handles
Mounting can be completed simply by replacing the installed operation handle. Complex installation is not required. |

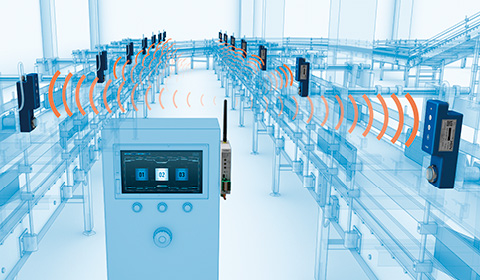

04:Wireless communication supported*
![]() |
Signals from the transceiver to each unit are transmitted* wirelessly, with no cable wiring required. No troublesome wiring is needed for the production line or equipment. Wired connection is also possible.* EPU-220 |

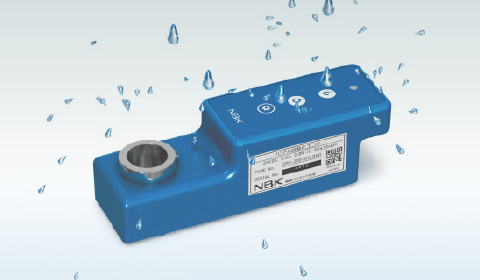

05:Dust-proof and waterproof (IP65)*
![]() |
Dust-proof and waterproof structure achieves IP65* protection class. It can be used safely even in environments where it may be exposed to dust or water.* EPU-210, EPU-220 |
![]() |
![]() |
||
---|---|---|---|
Rated Torque(Standard) | 0.8N・m | 0.8N・m | |
Rated Torque(Using High Torque Adapter) | 2.7N・m*1 / 5.4N・m*2 | 2.7N・m*1 / 5.4N・m*2 | |
Wired Connection | ○ | ○ | |
Wireless Connection | × | ○ | |
Display | ○ | × | |
Use as a single unit | ○*3 | × | |
IP code | IP65 | IP65 | |
Ext. dimensions(excluding the power cable and protrusions) | 45mm×150mm×45mm | 45mm×150mm×45mm | |
*1: When used in combination with High Torque Adapter EOAT-200-4 *2: When used in combination with High Torque Adapter EOAT-200-8 *3: Usable without PC, PLC, or EPC-200-CC, EPC-210-EIP, EPC-100 transceivers |
