【Specifications List of Premium Efficiency Motors】

(Compliant with JIS C 4213:2014)

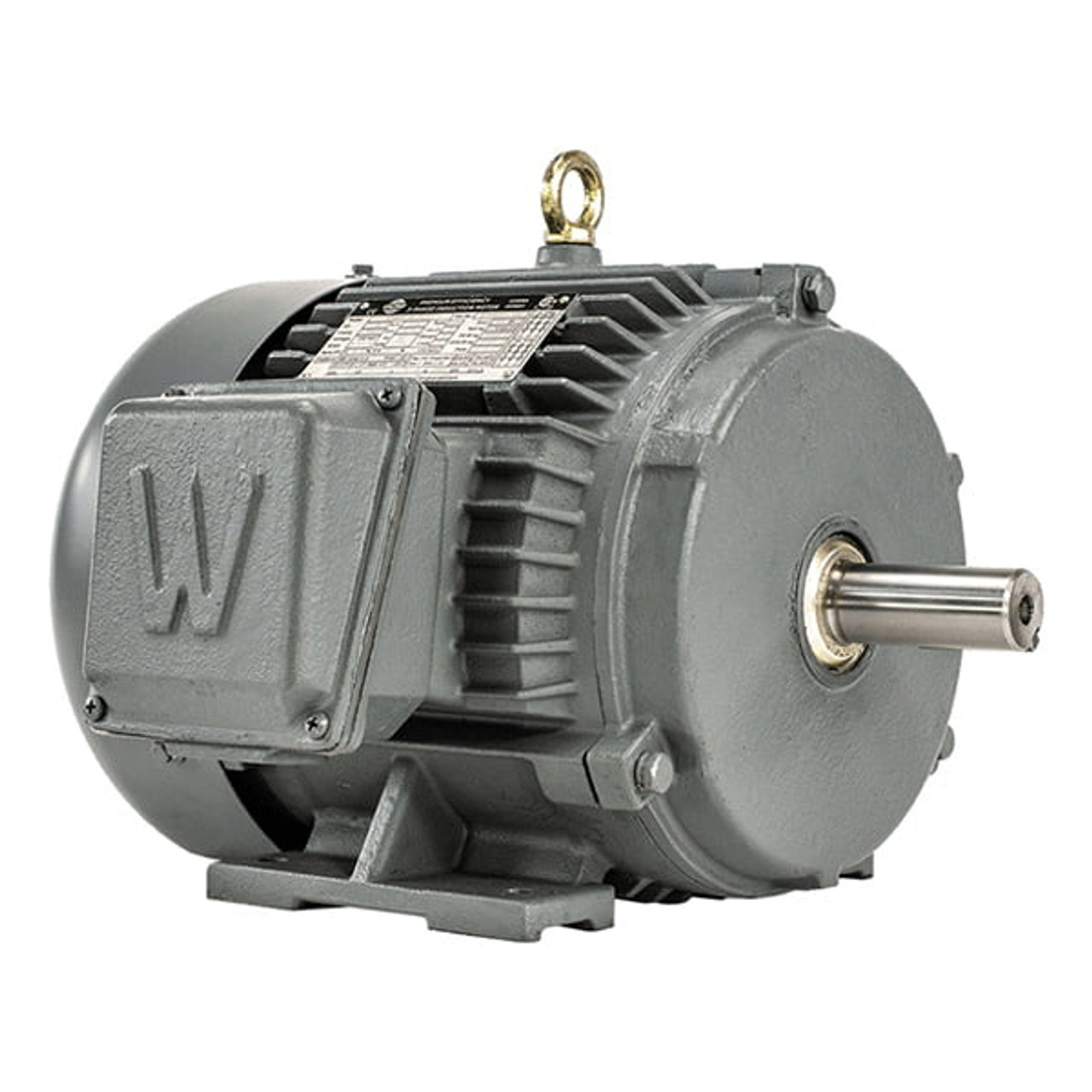

  • The motors are totally enclosed fan-cooled (TEFC) type. Models with 0.2 kW and 0.4 kW output are classified as Standard Efficiency motors (IE1). Models with 0.75 kW and above are Premium Efficiency motors (Top Runner motors).
  • The specifications for Premium Efficiency motors listed here are based on Top Runner motors compliant with JIS C 4213:2014, corresponding to the efficiency classes (IE codes) defined in JIS C 4034-30:2011.
  • All values are reference only. Frame numbers and rated specifications may vary depending on the motor manufacturer.

2-Pole Motors


Output [kW] 0.2 0.4 0.75 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45
Frame No. (IE1) Standard Efficiency (IE1) Premium Efficiency (IE3)
63M 71M 80M 90L 90L 112M 132S 132S 160M 160M 160L 180M 180L 200L 200L
Shaft Diameter & Tolerance [mm] 11 h6 14 j6 19 j6 24 j6 24 j6 28 j6 38 k6 38 k6 42 k6 42 k6 42 k6 48 k6 55 m6 55 m6 55 m6
Rated Current [A] 200V 50Hz 1.1 1.9 3.1 5.6 8.3 13.0 20.0 26.5 38 51 62 74 100 123 149
200V 60Hz 1.0 1.7 3.0 5.6 8.1 13.0 19.5 26.5 38 51 62 74 100 124 150
220V 60Hz 1.0 1.7 2.8 5.1 7.4 12.0 18.0 24.0 34 46 56 67 90 112 135
Rated Speed [min⁻¹] 200V 50Hz 2900 2900 2850 2865 2890 2930 2935 2940 2950 2955 2950 2960 2960 2970 2975
200V 60Hz 3475 3475 3420 3435 3465 3510 3525 3525 3540 3545 3540 3550 3550 3565 3565
220V 60Hz 3500 3500 3455 3470 3490 3530 3540 3540 3550 3555 3550 3560 3560 3570 3575



4-Pole Motors

Output [kW] 0.2 0.4 0.75 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45
Frame No. (IE1) Standard Efficiency (IE1) Premium Efficiency (IE3)
63M 71M 80M 90L 100L 112M 132S 132M 160M 160L 180M 180M 180L 200L 200L
Shaft Diameter & Tolerance [mm] 11 h6 14 j6 19 j6 24 j6 28 j6 28 j6 38 k6 38 k6 42 k6 42 k6 48 k6 48 k6 55 m6 60 m6 60 m6
Rated Current [A] 200V 50Hz 1.3 2.3 3.5 6.9 9.5 15.5 21.0 27.5 40 54 68 84 116 137 166
200V 60Hz 1.1 2.0 3.2 6.1 8.5 14.0 20.0 26.5 39 53 66 78 106 133 161
220V 60Hz 1.1 2.0 3.1 5.9 8.3 13.5 18.5 24.5 36 48 62 72 102 124 149
Rated Speed [min⁻¹] 200V 50Hz 1425 1425 1440 1450 1450 1465 1470 1470 1470 1475 1480 1475 1475 1480 1480
200V 60Hz 1710 1710 1725 1740 1740 1755 1760 1760 1765 1770 1775 1770 1770 1775 1775
220V 60Hz 1725 1725 1740 1755 1755 1765 1770 1765 1770 1775 1780 1775 1775 1780 1780



6-Pole Motors

Output [kW] 0.2 0.4 0.75 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45
Frame No. (IE1) Standard Efficiency (IE1) Premium Efficiency (IE3)
71M 80M 90L 100L 112M 132S 132M 160M 160L 180M 180L 180L 200L 200L 225S
Shaft Diameter & Tolerance [mm] 14 j6 19 j6 24 j6 28 j6 28 j6 38 k6 38 k6 42 k6 42 k6 48 k6 55 m6 55 m6 60 m6 60 m6 65 m6
Rated Current [A] 200V 50Hz 1.3 2.5 4.2 7.5 11.0 18.0 25.5 33.0 45 60 76 89 124 155 190
200V 60Hz 1.2 2.2 3.8 6.6 9.6 15.5 22.5 30.0 43 57 71 83 116 144 170
220V 60Hz 1.2 2.2 3.7 6.5 9.5 15.0 22.0 29.5 40 53 67 78 111 137 164
Rated Speed [min⁻¹] 200V 50Hz 920 930 965 970 975 975 975 980 980 980 985 985 985 985 980
200V 60Hz 1100 1120 1155 1160 1170 1170 1170 1175 1175 1175 1180 1180 1185 1185 1180
220V 60Hz 1125 1135 1165 1170 1175 1175 1175 1180 1180 1180 1185 1185 1190 1190 1180
