AQUA-SYSTEM Air motor type factory fan dedicated mist fan cool mister (ACM-A/ACM-E)

AQUA-SYSTEM

Air motor type factory fan dedicated mist fan cool mister (ACM-A/ACM-E)

Not sticky! Refreshing, smooth mist
Ideal for preventing heatstroke and static electricity in areas where fire is strictly prohibited

[Blower series]

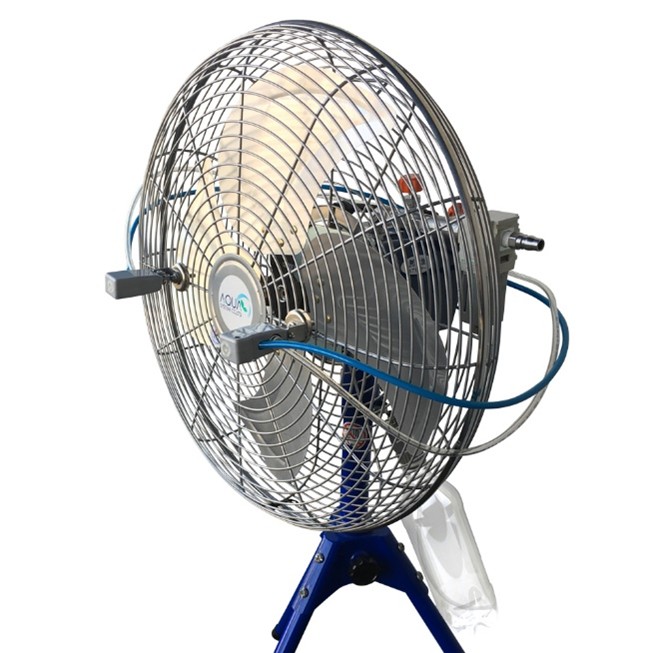

Mist fan/air cool mist/cool mister ACM-A (for air type only)/ACM-E (for electric type only)

◎Maximum cooling -8 degrees Celsius (-8℃)
Improves work efficiency in hot and humid workplaces

◎Safe and eco-friendly air drive model
Air drive that does not use electricity is safe even in areas where open flames are prohibited. It also has a high water-saving function and can be used while conserving water.



Advantages

Can be operated continuously

●Since the driving source is air, it can be used even in explosion-proof areas
●By adjusting the valve opening degree, 1 liter can be operated for about 8 hours



Features

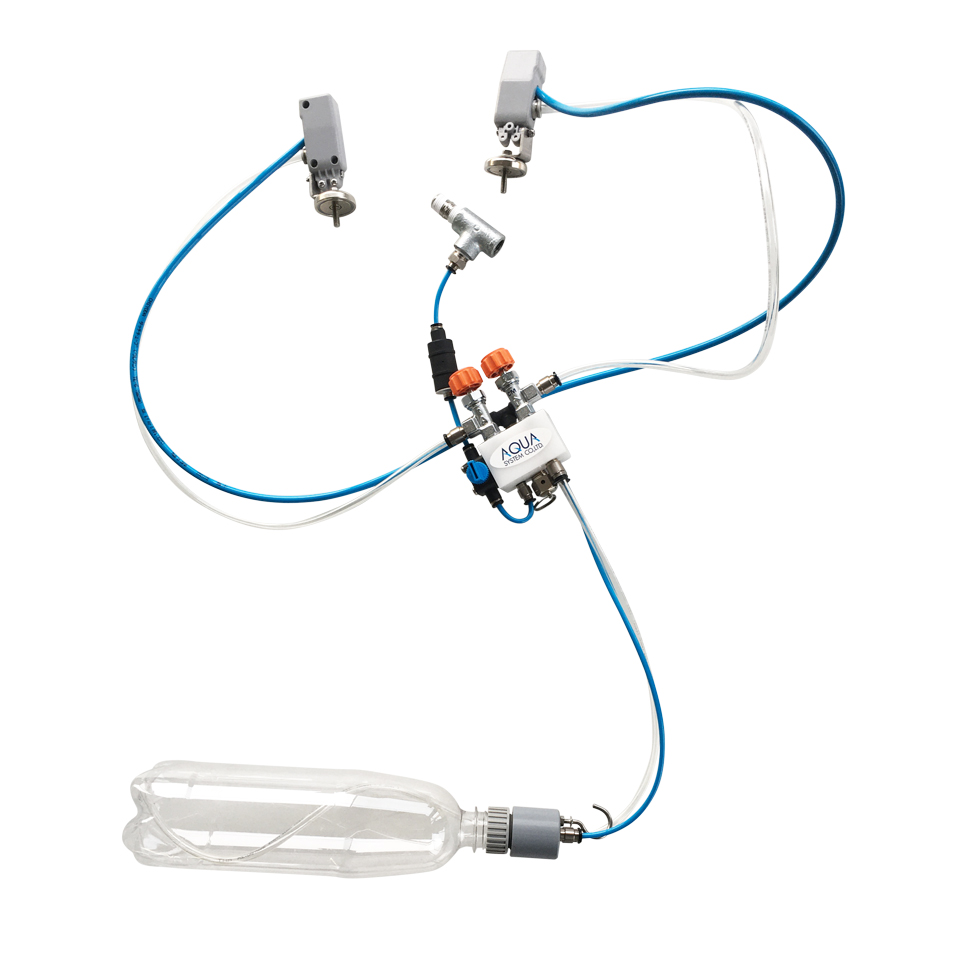

●Use the included special bottle instead of a tank
●The water tank is compatible with large 10 liter types and servers
●Circulator and oscillation function allow for cooling, ventilation, and blowing over a wide range
●Mist and air with the needle valve Adjusting the air volume



Applications
●Measures against heatstroke
●Improves the efficiency of drying work
●For air circulation in high-temperature locations and drying rooms
●Can be used in high temperature and high humidity environments (temperature: 0 to 60 degrees (℃))
*For other environments, please contact us separately. Please consult

[On-site]
Applications include chemical plants, paint shops, automobile carriers, shipyards, and other factories, as well as tunnel construction, LP gas station underground tanks, ventilation, as a replacement for explosion-proof fans, and installation in manholes on ships and decks. It varies.

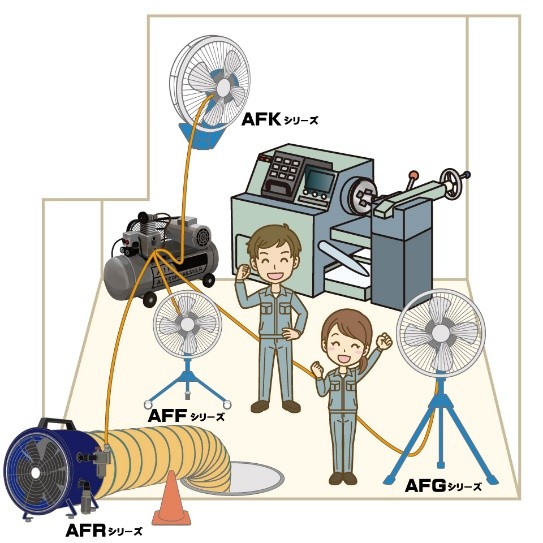

Image of a blower in a workplace

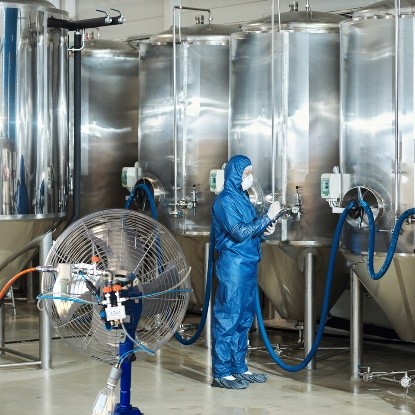

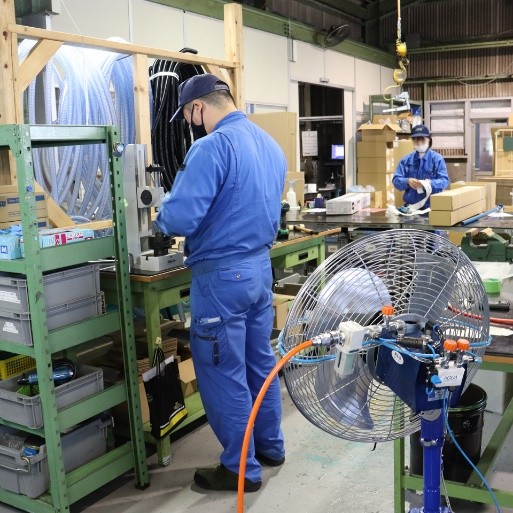

Ideal for heatstroke prevention in factories where heat is trapped For static electricity countermeasures in chemical factories

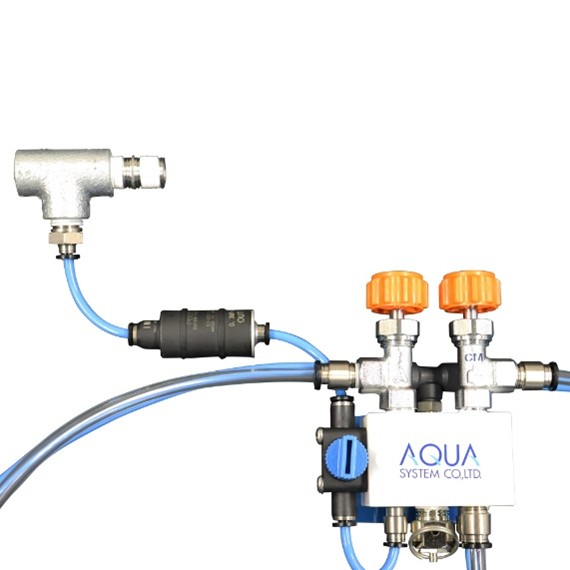

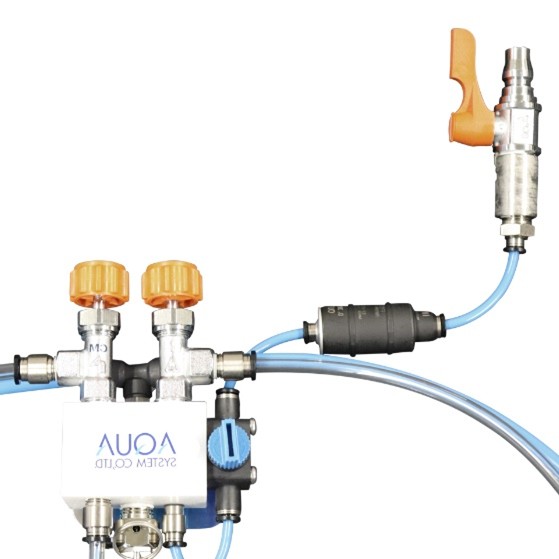

Differences in the air coupler part of ACM-A (for air type only)/ACM-E (for electric type only)



《Improvement example》



At sites where static electricity generation is strictly prohibited,

water was sprinkled as a countermeasure.

【Improvement example】
Not only does it help prevent heat stroke, but
it also generates a fine mist of water, eliminating the need to sprinkle water.
〇Environmental improvement

〇Safety assurance

<specification>

l* Regarding explosion-proofing, please check with your

blower series

Model ACM-A ACM-E
Compatible drive source Air type only For electric type only (*The drive source for the product itself is air type)
nozzle type 2 fluid
Mist spray amount adjustable
Water consumption/1h Valve opening 90 degrees/12L 1mm/0.09L 2mm/0.96L
Water supply method Tank/dedicated bottle
compressor horsepower 3
Operating air pressure (Mpa) 0.4~0.6
Air consumption (m3/min) 0.33
Air connection port Air coupler plug (male)
Wetted parts material Main body POM/SUS/Water resistant polyurethane/PVC
rubber seal FKM
accessories S-shaped hook/steel plate (65 x 45)/dedicated container
Weight (kg) 1.0

*The driving source for this product is air, regardless of whether it is "air type only" or "electric type only." This means that the specifications will be different when used with electric factory fans, etc.
